1).Material: electro galvanzied iron wire mesh, hot dipped galvanzied iron wire, pvc coated wire.
2). Diameter: BWG 26-16.
3).Aperture: 1'', 2'', 3'', 1/2'', 3/4'', etc.
4).Size: 3' x 100', or according to customers' request.

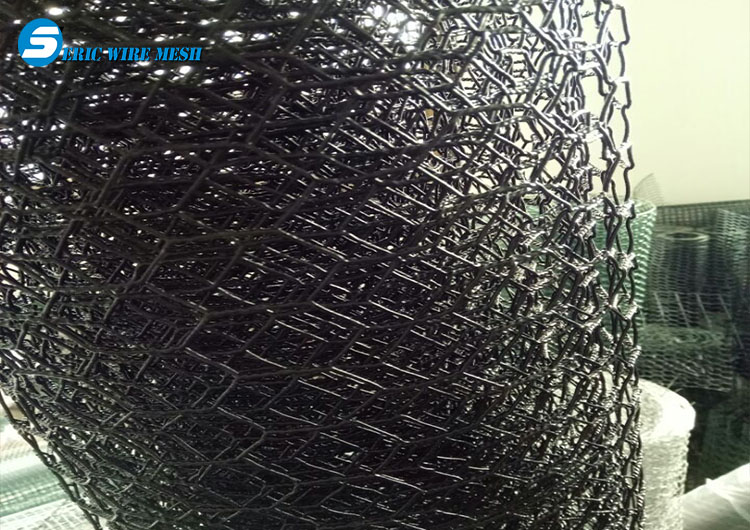

Galvanized Wire Mesh Rolls/Rabbit Cage/PVC Coated Chicken Coop Wire Netting Hexagonal Wire Mesh
Wire materials: Galvanized iron or PVC coated wire mesh.
Application: Hexagonal wire netting with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.
Material:galvanized wire,stainless steel wire,copper wire
Weaving types: positive and negative twist
Characteristics: good corrosion resistance and oxidation
The pictures as your reference
| chicken wire mesh in normal twist (width :0.5-2.5m) |
| mesh | wire gauge(BWG) |
| inch | mm |
| 3/8'' | 10mm | 27, 26, 25, 24, 23, 22, 21 |
| 5/8'' | 16mm | 25, 24, 23, 22, 21, 20, |
| 1/2'' | 13mm | 27, 26, 25, 24, 23, 22 |
| 3/4'' | 19mm | 25, 24, 23, 22, 21, 20, 19 |
| 1'' | 25mm | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4'' | 32mm | 22, 21, 20, 19, 18 |
| 1-1/2 | 38mm | 22, 21, 20, 19, 18, 17 |
| 2'' | 51mm | 22, 21, 20, 19, 18, 17, 16, 15, 14 |
| 3'' | 76mm | 21, 20, 19, 18, 17, 16, 15, 14 |
| Hexagonal Wire mesh |
| Mesh | Min. Gal.v.G/SQ.M | Width | Wire Gauge (BWG) |
| Inch | mm | Tolerance(mm) | | | |
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
